Order OV1
Pre-Order
$
4,500
00 USD
- 1 x OV1 Video Overlay Unit (OV1-100)
- 1 x Cine RT Mounting Block
- 1 x spare OV1 antenna
Proudly designed and assembled in Canada
Two (2) year limited warranty
30-day hassle-free Return Policy
package discount
OV1 Cables & Accessories
The OV1 is designed to integrate seamlessly into existing Cine RT and monitor workflows. It requires a small number of supporting accessories for operation.
Each OV1 requires:
- A 2-Pin LEMO power cable*
- 2x SDI cables for input and output video
- Access to a Cine RT System Programmer for firmware updates*
* If you already own a programmer or power cable from an existing Cine RT system, if can be used with your OV1 and does not need to be purchased again!
Mounting Block
The OV1 comes with one mounting block included. Please select a mounting block.
1/4" 20 Thread Low-Profile Mounting Block with ARRI (1/4 20 spacing) Pin-Lock Holes
CRT-MBL-14
Select mounting blocks
Order additional mounting blocks here.
1/4" 20 Thread Low-Profile Mounting Block with ARRI (1/4 20 spacing) Pin-Lock Holes
CRT-MBL-14
$5500 USD
3/8" Mounting Block with Standard ARRI Pin-Lock Holes
CRT-MBL-38
$5500 USD
Cine Lock "Anti-Twist" Receiver Cradle (1/4" 20) Mounting Block
CRT-MBL-CLK
$5500 USD
3/8" Bottom Mounting Block with Standard ARRI Pin-Lock Holes
CRT-MBL-BOT
$5500 USD
Complete your system
Skins, mounting solutions, and protective components to complete your system. The OV1 requires a System Programmer for updating firmware on the Cine RT Base & Handset.
package discount
System Programmer
CRT-PRG-100-ACC
$36000 USD
- Required to update firmware on Cine RT Base/Handset for use with OV1
System Programmer to update firmware on Cine RT Base/Handset.
package discount
THE FLEA Data Interface Module
CRT-DIM-100-ADD
$90000 USD
Connects to the Cine RT Base Sensor and supports the integration of third-party rangefinding devices, enabling additional distance data sources within the Cine RT ecosystem.*
Currently supported devices include the laser-based Ward’s Sniper rangefinder and Qinematiq FocusBuddy RF Tag transmitters, which enable continuous distance measurement of tagged subjects.
*Compatible devices include those providing CineTape-format distance output.
Silicone Handset Skin
CRT-HSU-SKN-BLK
$7500 USD
Protective Silicone Skin for the HSU-100 Handset Unit. Available in 4 colours.
Current selection: Black
Silicone High-Bright Skin
CRT-HBD-SKN-BLK
$7500 USD
Protective Silicone Skin for the HBD-100 High-Bright Display. Available in 4 colours.
Current selection: Black
Silicone Base Skin
CRT-UBS-SKN-BLK
$7500 USD
Protective Silicone Skin for the UBS-100 Ultrasonic Base Sensor in Black
The BEETLE
CRT-LNK-BEE-TLE
$
76
00 USD
The BEETLE works perfectly with the Cine RT 3/8″ Mounting Block (CRT-MBL-38). Its genderless design lets you connect any two halves together. Compatible with the original LNK.
Noga Arm LC9014
CRT-NOG-ARM-ACC
$17500 USD
A compact articulating mounting arm for attaching small accessories to the system. Three adjustable joints and a central locking knob allow quick positioning and secure locking.
- Threads: 2 × 1/4″-20
- Length: 3″ (76 mm)
- Weight: 4.5 oz (120 g)
- Load Capacity: 4.4 lb (2 kg)
Horn Protector
CRT-UHP-100-ACC
$27500 USD
Ultrasonically transparent dust protection for your Cine RT Base Sensor horns. The UHP-100 friction fits securely over the horn tips to shield the delicate transducers from dust, debris, and moisture without affecting range or performance.
Customize your cables
Configure power and serial/y-cables for your Cine RT system per your requirements.
FLEA Cables
Please select the appropriate Serial Interface Cable for the specific device you wish to connect.
Power Cables
The OV1 is a 12V device and requires a 2-Pin Lemo power cable to power the unit. The unit is compatible with all Focusbug, ARRI, Preston, and Teradek power cables.
Choose power cables for your Cine RT system.
- The Base, Handset, High-Bright Display and OV1 each use a 2-Pin LEMO Power Input.
- The Bug Tx charges via the included USB cable.
- Standard cable lengths are: 24″ (60cm) or 36″ (91cm).
- Custom cable lengths available for an added $25 fee.
** Please note the following voltage requirements: **
- Cine RT Base Sensor: 9-30V
- Cine RT Handset Unit: 7-20V
- Cine RT High-Bright LED Display: 7-20V
3-Pin FISCHER cables (24V) are for the Base Sensor ONLY.
Serial/Y-Cables
The Cine RT can send distance data to most popular lens control systems. Select your system to view cable connectivity options.
The Cine RT Base Sensor must be hard wired to the serial input of an on-camera LCS component for distance data to be sent. Focusbug offers two options to output distance data:

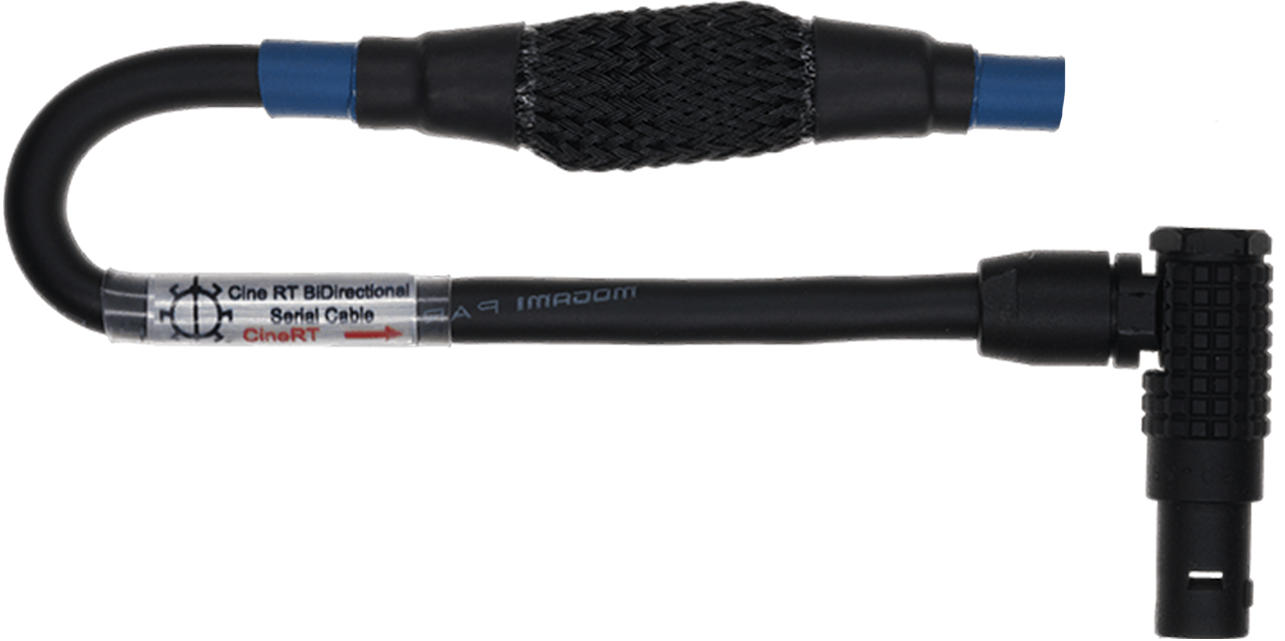

Serial Cables
Cine RT Serial Cables contain proprietary in-line active electronics necessary to communicate with most available lens control systems (LCS).
The Cine RT end of the Serial Cable is a custom-keyed 6-Pin LEMO Right Angle connector.

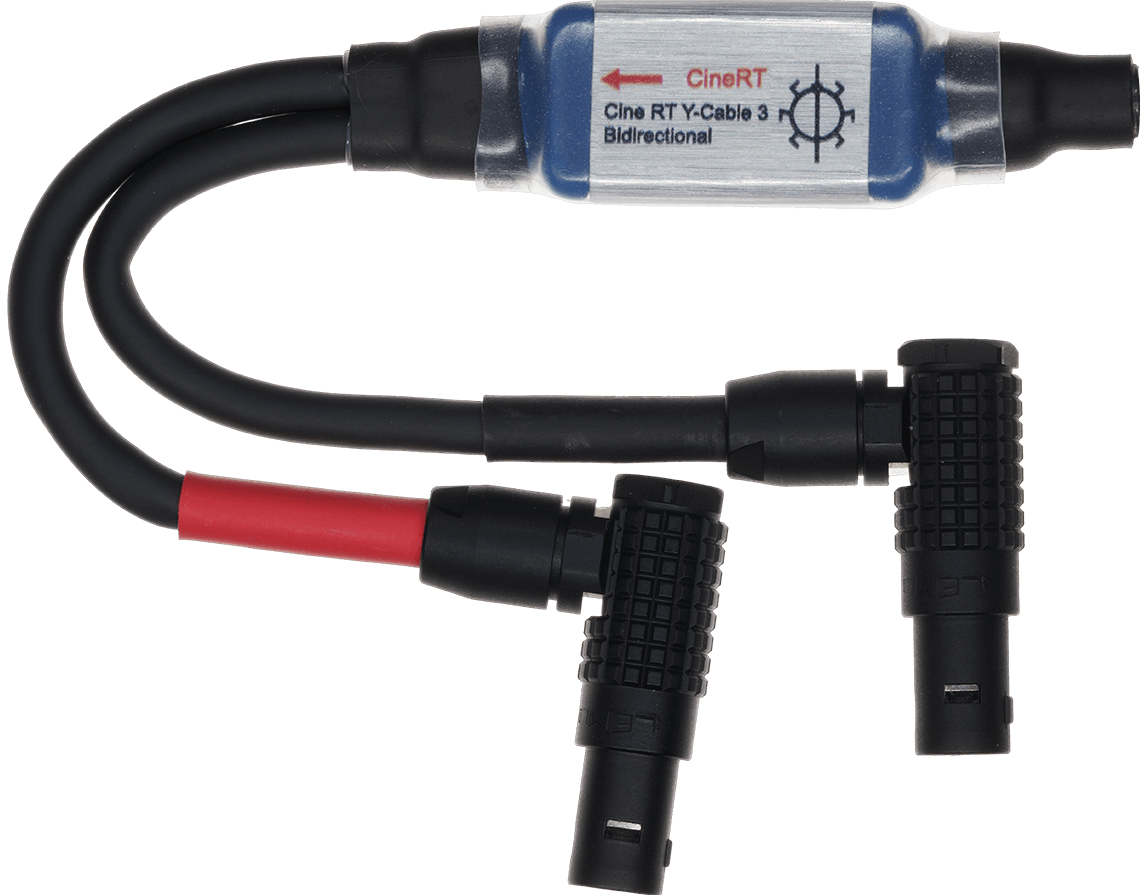

Y-Cables
Cine RT "Y" Cables contain proprietary in-line active electronics necessary to communicate with most available lens control systems (LCS) as well as extra power filtration to power the Cine RT directly from your LCS Serial connector without interference from "noisy" motor control units.
The Cine RT ("Y") end of the cable has two connectors: a Right Angle custom-keyed 6-Pin LEMO serial connector & a Right Angle 2-Pin LEMO power connector.
Review your order
View your order selections below. To edit your order navigate back to the relevant tab.
OV1 Cine RT Overlay Module
SKU: CRT-OV1-100-ACC
$4,500 USD
Submit your order
Customer information
Please enter your shipping information and any order notes below.
Order summary
Total
$12,870 USD
This order form is not a contractual agreement.
A formal estimate/invoice will be issued after this form is submitted. All prices are in USD and exclusive of taxes. Any applicable taxes, customs duties and import fees are the responsibility of the buyer.
Payment Terms: payment due upon invoicing.
